Short Description
Spectroscopic ellipsometers are used to determine the optical properties of thin films and surfaces with monolayer sensitivity (surface physics/analytics).

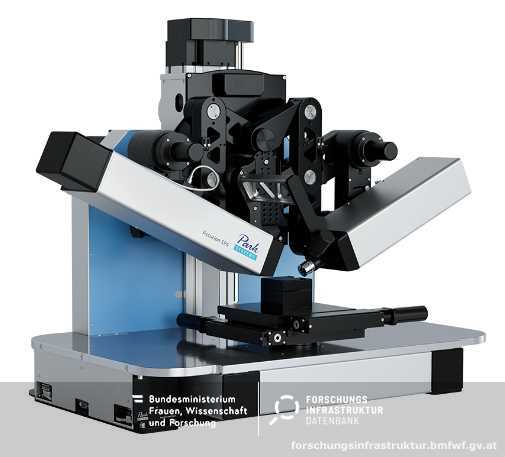

Therefore, a reflective, planar surface is required. The imaging ellipsometer can analyze lateral structures with a spatial resolution of minimal 1 µm in the wavelength range between 190 nm and 1700 nm. By means of the change in polarization of the light reflected at various adjustable angles of incidence, the complex dielectric function or complex refractive index, as well as the film thickness (approx. 0.1–10,000 nm), can be determined. Furthermore one can determine anisotropic optical properties (the dielectric tensor) under consideration of different incidence angles and various azimuthal sample orientations.
The instrument’s “Müller matrix” extension further enables the analysis of light depolarization. The extraction of the sample properties from the measured polarization-optical data requires an optical layer model and a respective Software. In complex sample structures, the number of independently determinable parameters is limited. If necessary, complementary measurement methods must be employed or separate measurements must be performed on, for example, the substrate material.
Contact Person
Dr. Christoph Cobet
Research Services
upon request
Methods & Expertise for Research Infrastructure
Potential applications of the imaging Müller matrix ellipsometer cover almost all typical applications of spectroscopic ellipsometry that can be performed under cleanroom conditions.
