Short Description
1x Pump source M-PICO-LAB, 1x Cooling unit, 1x Stuttgart Instruments Alpha (customized), 1x VIS Module for Alpha
Average power > 4 W
Pulse duration 1.2 - 1.4 ps
Repetition rate (customized) 75.95 MHz ± 30 KHz requires temperature stability ±1°C
Center wavelength 1045 ± 10 nm
Beam quality M2 < 1.2 (determined with Ophir M2-200)
Footprint (LxWxH) ~ 520 x 150 x 105 mm3

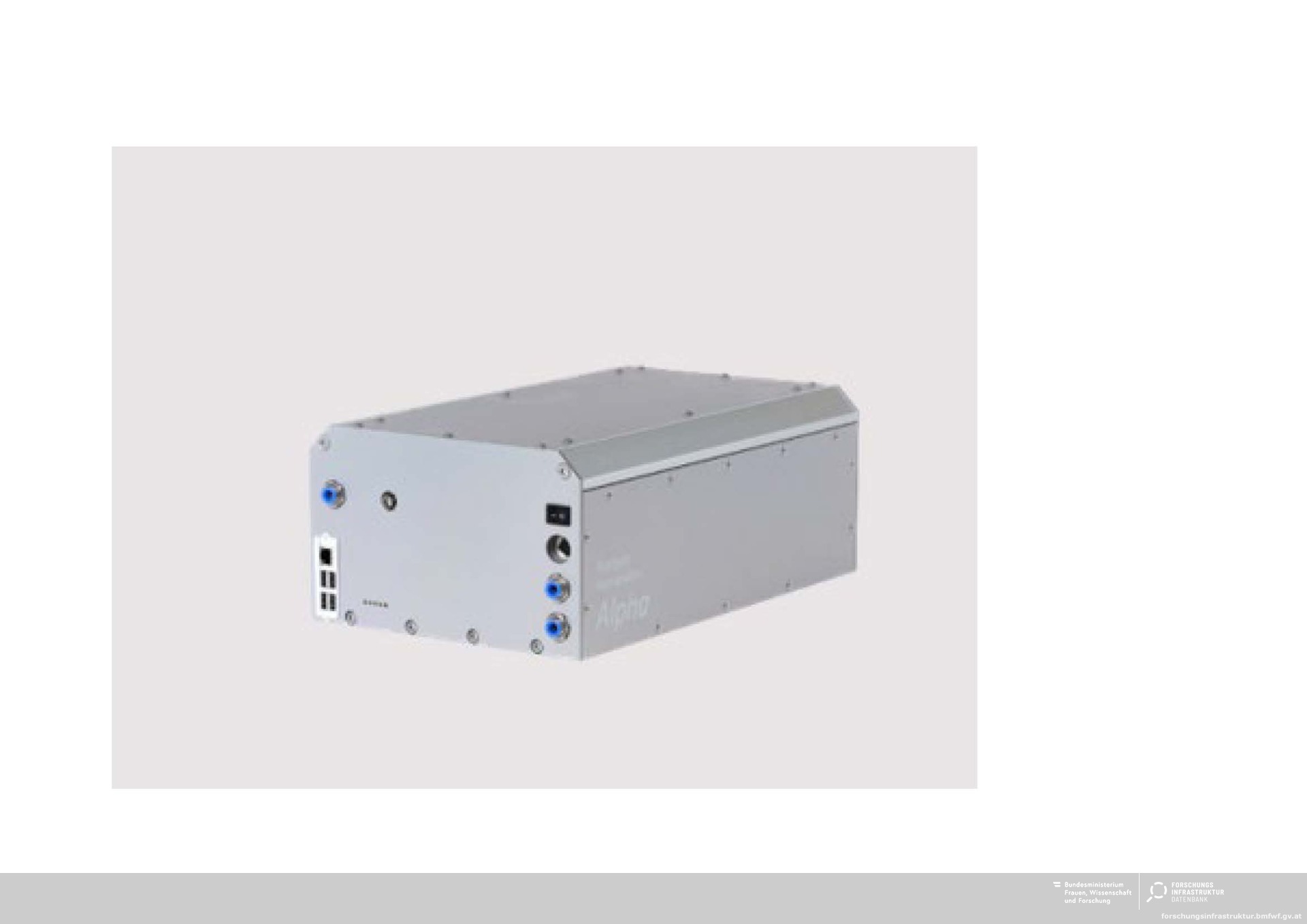

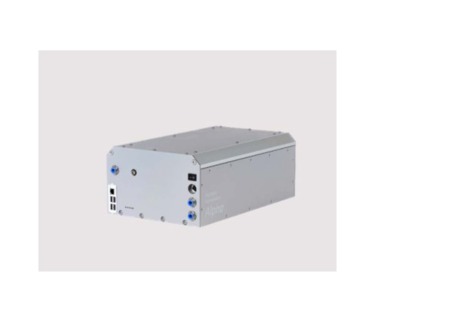

Tunable optical parametric frequency converter. It can be equipped with HP module for further amplification.
Pumped by M-PICO-LAB
Repetition rate matched to Pos. 1
Center wavelength (signal) 1380 – 2000 nm
Center wavelength (idler) 2150 – 4500 nm
Average power typically up to 400 mW at 1500 nm
Pulse duration ~ 1 ps
Spectral bandwidth (FWHM) < 20 cm-1
Beam quality TEM00; M² < 1.3
Output beam waist typ. 1 mm (1/e² radius) at 1550 nm
Polarization p-pol for all beams (parallel to plane of the optical table)
Footprint (LxWxH) 425 x 260 x 170 mm3
Contact Person
Philip Walther
Research Services
Derzeit werden keine Research Services für diese Forschungsinfrastruktur angeboten. Bei Interesse an einer Kooperation setzen Sie sich bitte mit Philip Walther (walther-office@univie.ac.at.) in Verbindung
Methods & Expertise for Research Infrastructure
Einzigartige Technologie optischer parametrischer Oszillatoren mit Faserrückkopplung.
